Spray and Testing Equipment

Spray Equipment

As market leaders of industrial paint spraying equipment, Industrial Coatings Ltd supply and support you with the products and brands you’re looking for: Graco, DeVilbiss, Wagner etc.

Working with our supply partners we can also service any spray equipment ensuring your kit is as good as new at all times.

Our products include:

  • Air Assisted Spray Guns and Tips
  • Airless Spray Guns and Tips
  • Pressure Feed Spray Guns
  • Suction Spray Guns
  • Gravity Spray Guns
  • Pneumatic Spray Guns
  • Air Compressors
  • Electric Spray Pumps
  • Air Hose, Tips and Fittings
  • Fluid Hose
  • Pressure Pots
  • Spray Gun Cleaners
  • Spray Gun Filters and Accessories

You will understand that using the correct equipment for your project is essential, that’s why we ensure that you’re supported and supplied with the best items and technical guidance for the professional result you require.

Testing Equipment

Being U.K. Official Defelsko Suppliers, we have over 70 models of coating thickness gauges and inspection instruments, used for a wide variety of applications in a broad range of industries. With unequalled handling characteristics and easy, trouble-free operation. They are simple to use and employ leading-edge technology.

Our expert technical sales and support team has one goal: to provide a level of service that is above and beyond your expectations.

PosiTest FM and GM

Starting with the mechanical PosiTest FM and GM, a commitment to excellence in manufacturing and excellent after sales support is clearly displayed.

  • Coating Thickness Gauge

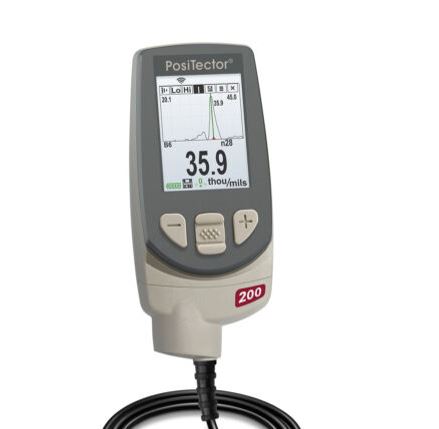

    Coating Thickness / Dry Film thickness (DFT)

    Coating thickness or dry film thickness (DFT) is an important variable that plays a role in product quality, process control, and cost control. Measurement of film thickness can be accomplished by selecting the best gauge for the particular application.

  • Surface Profile

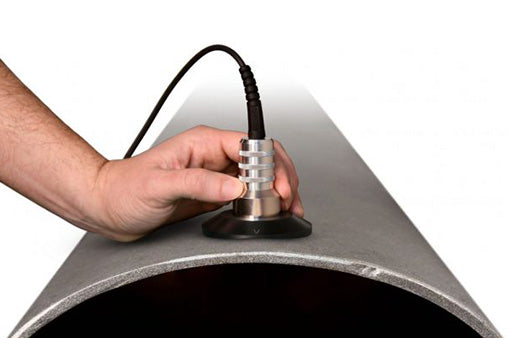

    Surface Profile

    Steel is often abrasive blast cleaned or otherwise roughened prior to painting. The peak-to-valley height of the resultant surface profile is an important factor in the performance of applied protective coatings. Low profile may reduce coating bond strength (adhesion). Too high and the peaks may receive insufficient coverage and possibly rust prematurely. The costly application of more coating may be required if the profile is too high. For these reasons, surface profile should be measured prior to coating application to ensure that it meets contract specifications.

  • Positector Salt Testers

    Environmental Conditions

    Environmental conditions during pre-treatment and application of a coating system are major factors affecting the long-term performance of coatings on steel structures. Meters can be used to monitor environmental conditions before, during and after painting. Ideal for surface preparation as required by ISO 8502-4, an electronic Dew Point Meter determines the likelihood of dew forming on structures which are being painted.

  • Salt tester

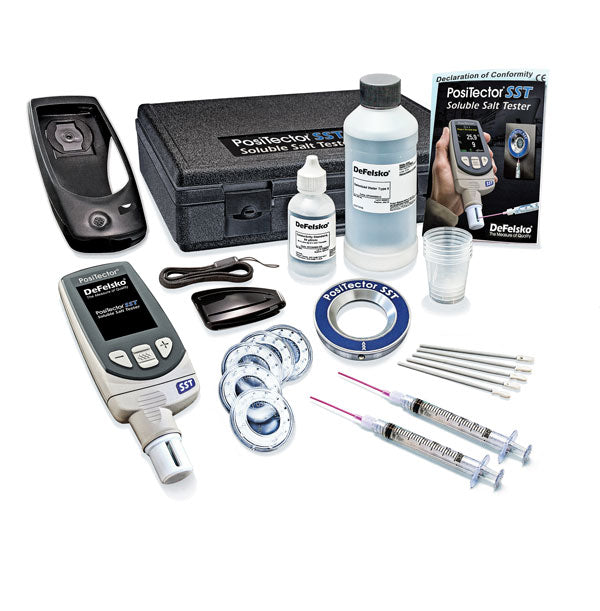

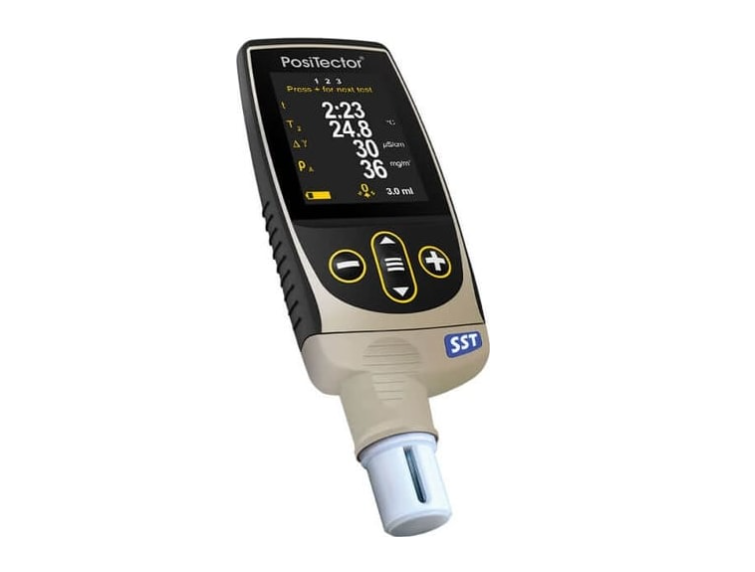

    Salt Contamination

    Soluble salt testers measure the concentration of soluble salts (salt contamination) on metal surfaces in accordance with ISO 8502-6, 8502-9. To ensure a commercially acceptable end product ensure that your surfaces are to an acceptable level of salt contamination.

  • Adhesion Testers

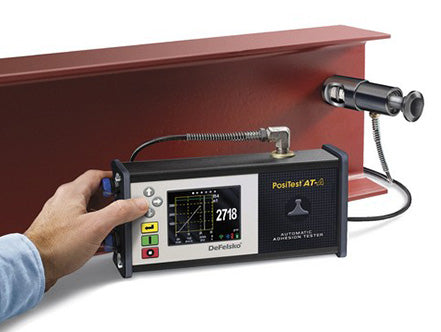

    Pull-off Adhesion Testers

    Pull-off Adhesion Testers measure adhesion of coatings to metal, wood, concrete and other rigid substrates.

  • In situ concrete moisture meter

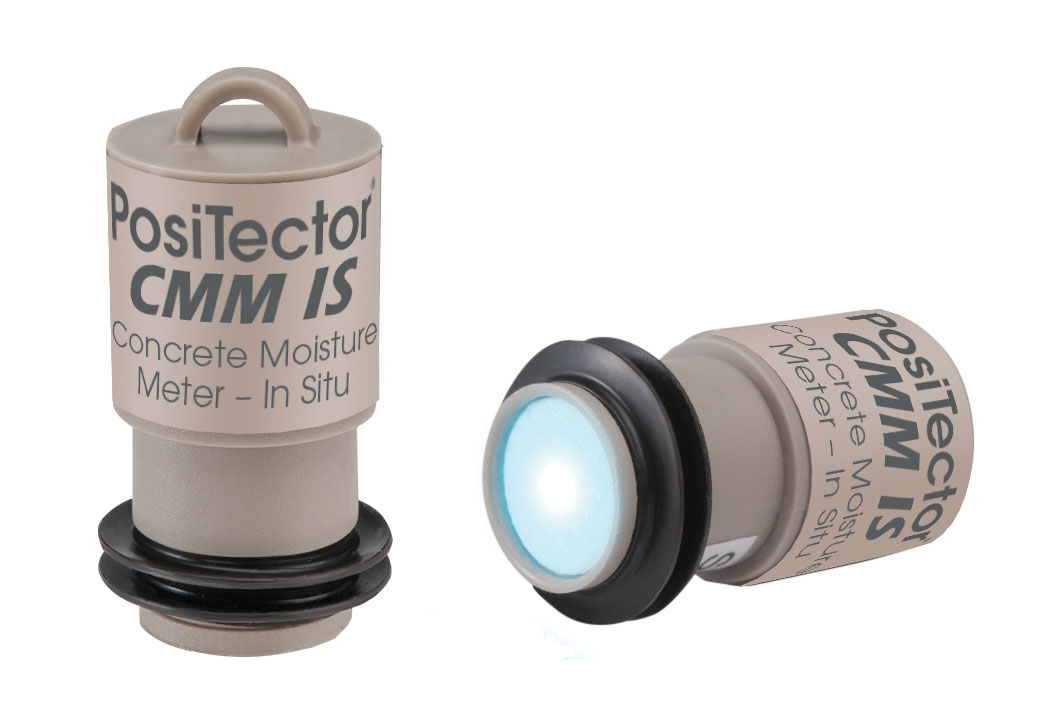

    In-Situ Concrete Moisture (RH) Meter

    Measures relative humidity and temperature in concrete floor slabs. The PosiTector CMM IS probes and free mobile app guide users through the ASTM F2170 documentation criteria. View and record readings directly with your smart device or PosiTector DPM Advanced gauge.

  • Ultrasonic Thickness Gauges

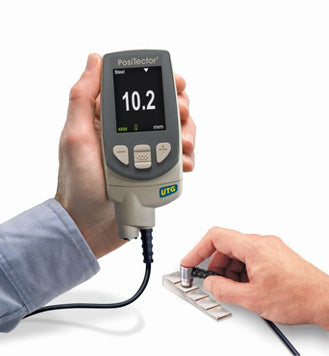

    Ultrasonic Thickness Gauges

    Ultrasonic Thickness Gauges measure wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo (UTG M) thru-paint models measure the metal thickness of a painted structure without having to remove the coating.

  • Pinhole Holiday Detectors

    Pinhole / Holiday Detectors

    After a protective coating has been applied, it is important to ensure there are no defects or discontinuities present that expose the substrate beneath. Small areas of thin or missing coating, called ‘pinholes’ or ‘holidays’, can become foci for corrosion and drastically reduce the life of a protective coating system. A holiday detector is a non-destructive instrument used for detecting these discontinuities. Other names include pinhole detector, porosity detector and continuity tester.
