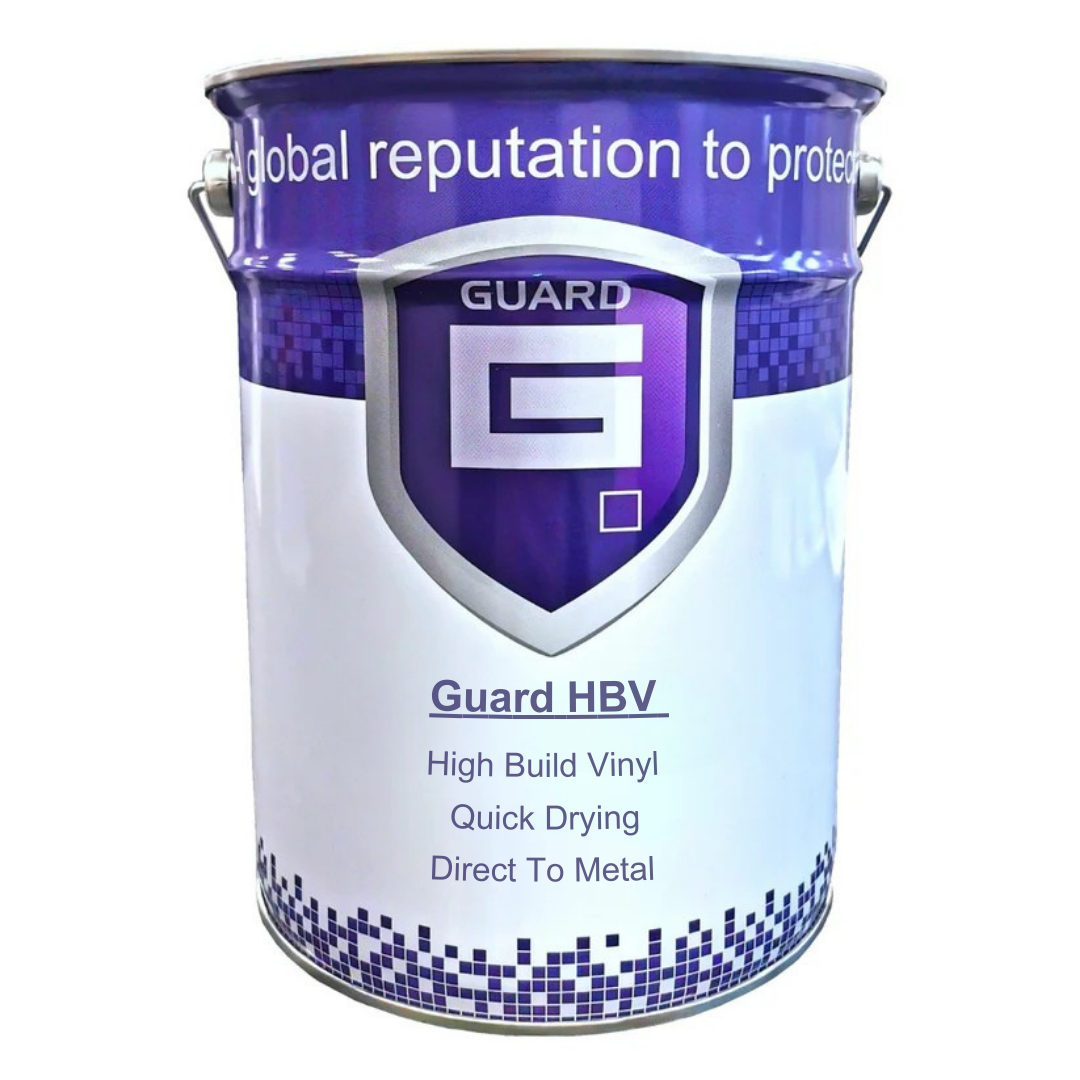

Guard HBV

Guard HBV

Brand: Guard

Regular price From £49.79
(£59.75 Inc VAT)
Regular price Sale price £49.79
Sale Sold out
Shipping calculated at checkout.

Guard HBV is a single pack solvent-based one coat product for suitably prepared steel, optimised use onto galvanised steel and aluminium.

read more

Select Your Options

Colour Group

View full details
  • Datasheet


Guard HBV is a single pack solvent-based one coat product for suitably prepared steel, optimised use onto galvanised steel and aluminium.

    • Pack Sizes: 5 litres (Nominal Volumes)

    • Colours: Full tintable colour range. All RAL & BS4800 colours and specials on request.

    • Gloss Level: Matt, Satin, Gloss
Guard HBV


Recommended Uses

Guard HBV is designed for protection of galvanised steel structures. Ideal for gates, railings and industrial plant equipment. Ideal for application onto steel where full ST3 / Sa2.5 preparation cannot be achieved. Ideal for environments with higher humidity.



    • Brush: Occasional. Use with caution, can be prone to brush marks

    • Roller: Yes. Small areas only

    • Conventional Spray: Yes. Thin up to 10% - added as approximately 3-5% each time

    • Airless Spray: Yes. Nozzle size 18-21 thou, fan angle 80°, tip pressure

    • Air Assisted Airless Spray: No. Not optimised.

For further information and guidance on application, please refer to the Data Sheet or contact us.


Drying and Curing Time

    • Touch Dry: 1 hour

    • Hard Dry: 12 hours

    • Full Cure: 3 days

    • Re-coatable: After 3 hours

Drying times are based on temperatures of 20°C, lower temperatures will increase drying times. Please speak with our technical team before elevating temperatures or attempting to force cure any of our products unless already stated. Shop conditions such as having good airflow will optimise curing.



Designed as a ‘OneCoat’ primer/finish product, although would be suitable over single component alkyd primers such as Guard EP and Guard GIP. Can be top coated with most single component topcoats such as Guard FEB, Guard FES (alkyds) and Guard SPU (polyurethane).


Surface Preparation

    • Ensure surfaces are clean, dry and free from grease and other contamination before coating.

    • Thoroughly degrease and where applicable, abrade to remove rust and promote good adhesion of the coating. For optimum corrosion protection, mild steel should be blast cleaned to Sa2.5.

    • Complex structures may be more effectively cleaned by HPWJ (high pressure water jetting).

    • For the best corrosion protection we recommend stripe coating all edges and hard to reach areas with this product first, before application of a full coat.



Guard Solvent A



Guard Solvent A

Once painting has been completed, clean all equipment with above mentioned cleaning solvent. Spray equipment should be appropriately flushed through for 3-5 minutes (returning unused paint to the tin, unless thinned which should be stored in a separate tin) before replacing any used solvent with clean solvent to leave in the pump, gun and lines.


Safety Precautions

To avoid the risk of spillage always store and transport in an upright secure position. Materials are hazardous and can also be flammable therefore appropriate precautionary measures must be taken including the use of gloves, glasses and recommended P.P.E in accordance with the material safety data sheets (MSDS).

Please refer to the product Data Sheet and Material Safety Data Sheets for full details regarding the safe use and storage of this product. We also offer free technical advice – click here to contact us.
